客户端开发框架

1.Hibernate

1. 安装hibernate tools

   官网下载离线包或者在线安装hibernate插件（JBoss Tools）。

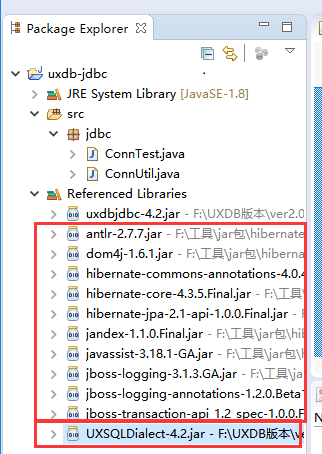

2. 导入hibernate驱动包

   a. 导入官网下载的hibernate驱动包；

   b. 导入uxdb的hibernate驱动包uxdb的hibernate驱动包（UXSQLDialect-4.2.jar）在uxdb的安装目录中获取。

3. 创建hibernate.cfg.xml

   uxdb server端IP为192.168.1.82，端口为5432，数据库为test，用户名为uxdb，密码为123456。

   a. 创建hibernate.cfg.xml；

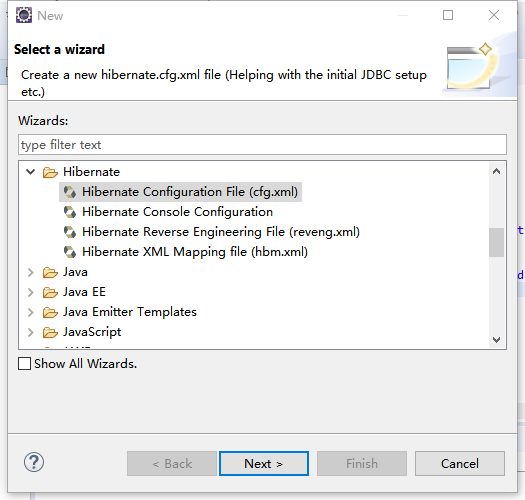

   右键src，New=>Other...=>Hibernate=>Hibernate Configuration File(cfg.xml)，单击Next。

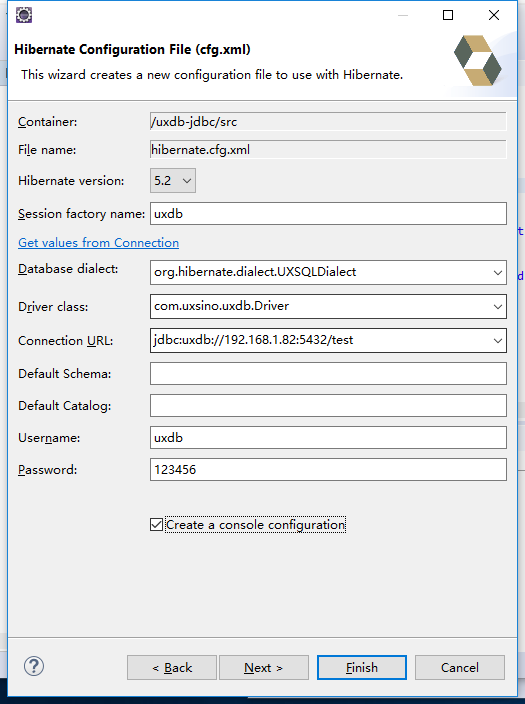

   根据下图填写相关配置，勾选Create a console configuration，单击Next：

   Session factory name：uxdb
   Database dialect：org.hibernate.dialect.UXSQLDialect
   Driver class：com.uxsino.uxdb.Driver
   Connection URL：jdbc:uxdb://192.168.1.82:5432/test
   Username：uxdb
   Password：123456

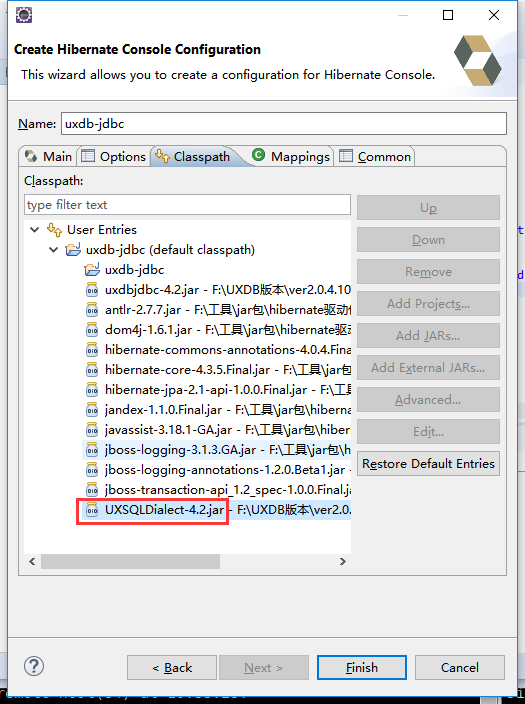

   b. 单击Classpath标签页，选择uxdb的JDBC驱动包，然后Finish。



4. 连接数据库并生成源代码

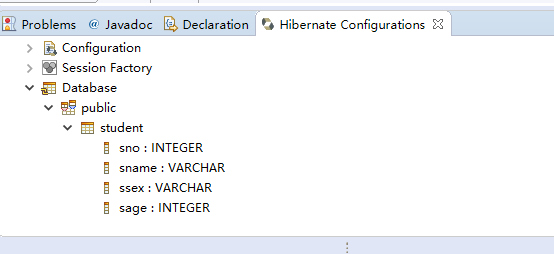

   a. 打开Hibernate Configurations的View窗口，如下图显示即数据库连接成功。

   Window=>Show View=>other..=>Hibernate=>Hibernat Configurations，单击open。



   b. 反向生成java代码

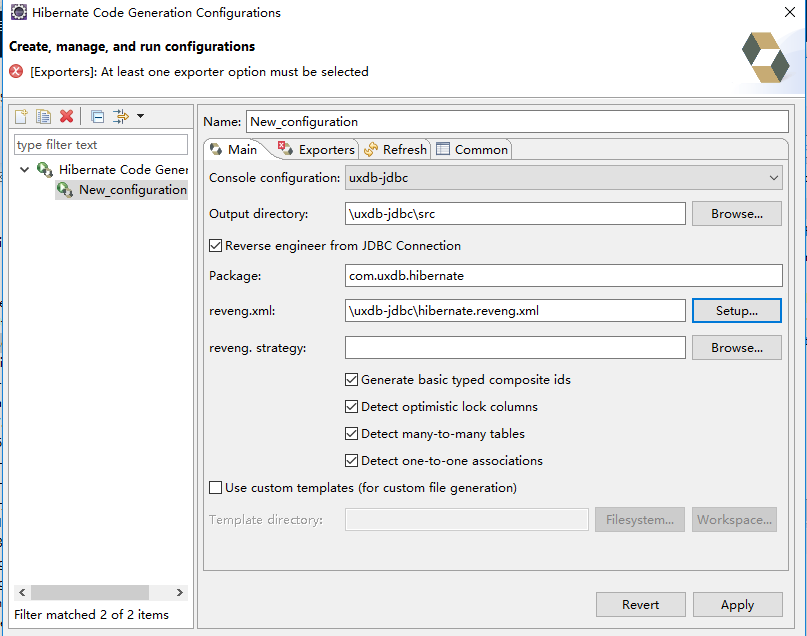

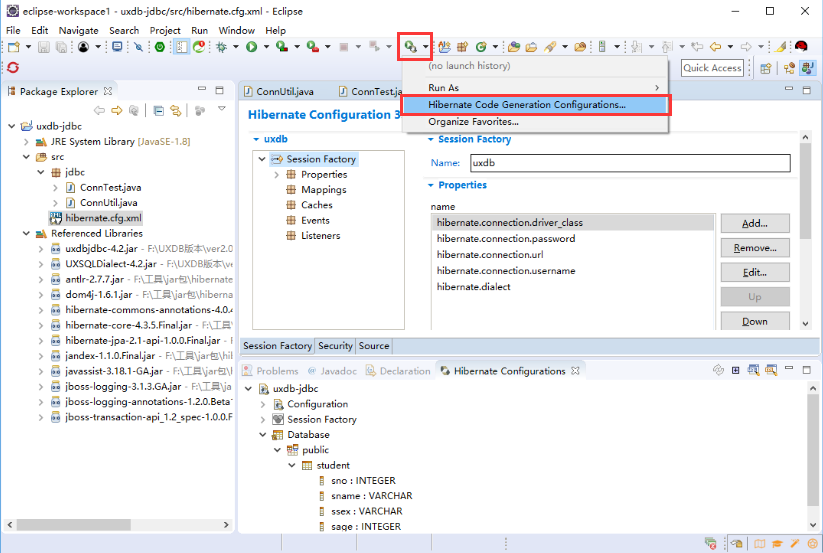

   • 新建Hibernate Code generation 的configure

     双击Hibernate Code Generation打开配置文件，名称默认是New_configuration；Output directory选择\uxdb-jdbc\src；勾选Reverse engineer from JDBC Connection；Package填写com.uxdb.hibernate

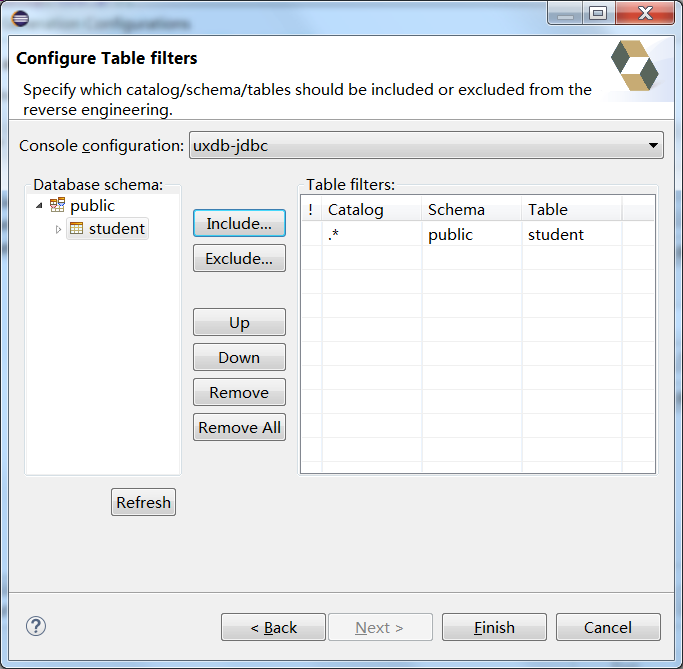

   • reveng.xml单击setup...=>Create new...，选择路径uxdb-jdbc，单击Next，进入Configure Table filters页面，单击Refresh，点开public，选择student，单击Include...

   • 单击Finish。

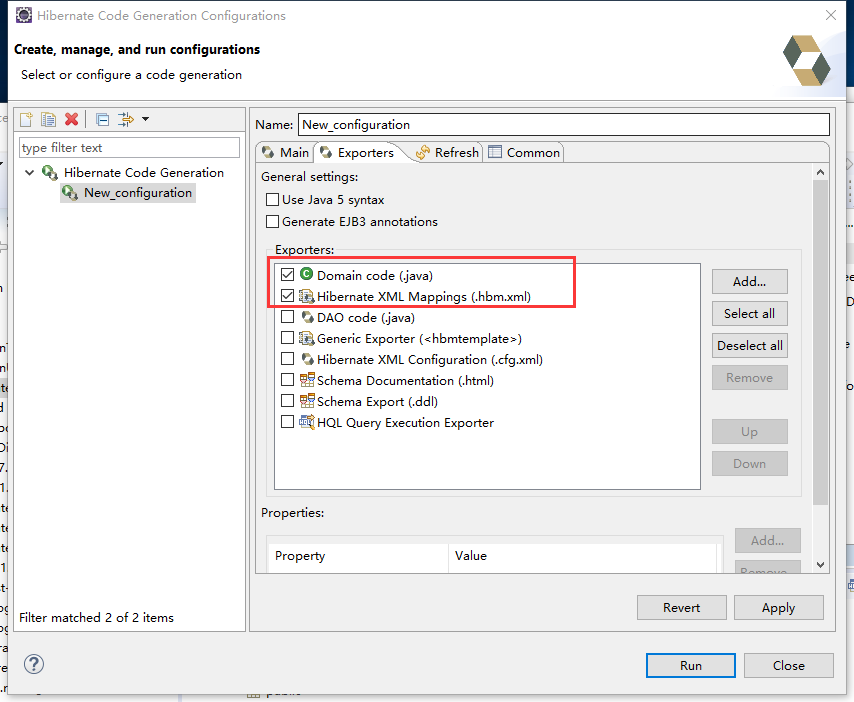

   • 选择Exporters选项卡，并进行如下的配置，勾选Domain code和Hibernate XML Mappings，单击Run完成。

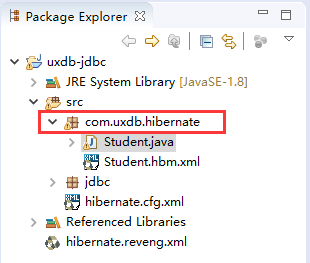

   • 工程中生成了com.uxdb.hibernate包及访问数据库的源代码，如下所示。

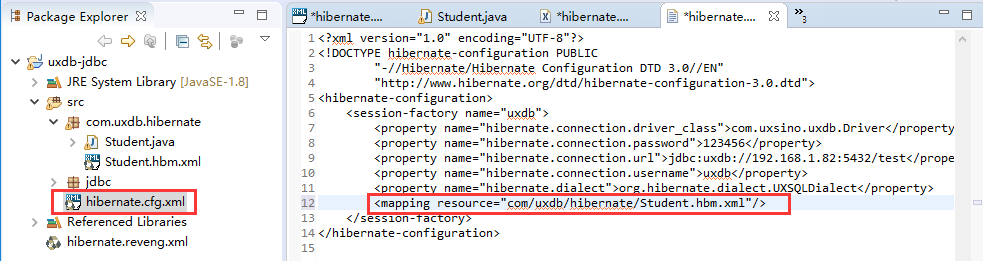

5. 修改hibernate.cfg.xml

   右键hibernate.cfg.xml，Open With=>Test Editor，增加如下内容：



6. 创建hibernate的测试类

   右键包com.uxdb.hibernate，New=>class，Name输入HibernateTest，单击Finish。

   HibernateTest.java代码如下：

   package com.uxdb.hibernate;
   import java.util.List;
   import org.hibernate.Query;
   import org.hibernate.Session;
   import org.hibernate.SessionFactory;
   import org.hibernate.cfg.Configuration;
   public class HibernateTest {
       @SuppressWarnings({ "unchecked", "deprecation" })
       public static void main(String[] args) {
           //读取hibernate.cfg.xml文件
           Configuration cfg = new Configuration().configure();
           //建立SessionFactory
           ServiceRegistry sr = new ServiceRegistryBuilder().applySettings(cfg.getProperties()).buildServiceRegistry();
           SessionFactory factory = cfg.buildSessionFactory(sr);
           Session session = null;
           try {
               //取得session
               session = factory.openSession();
               //开启事务
               session.beginTransaction();
               Student student = new Student();
               student.setSno(2001);
               student.setSname("testname");
               student.setSage(55);
               student.setSsex("男");
               //保存student对象
               session.save(student);
               List<Student> list;
               String sql = "from Student";
               Query query = session.createQuery(sql);
               list = (List<Student>)query.list();
               System.out.println("studentnew");
               for (Student u : list) {
                   System.out.println(u.getSno() + ";" + u.getSname() + ";" + u.getSage() + ";" + u.getSsex());
               }
               //提交事务
               session.getTransaction().commit();
           }catch(Exception e) {
               e.printStackTrace();
               //回滚事务
               session.getTransaction().rollback();
           }finally {
               if (session != null) {
                   if (session.isOpen()) {
                       //关闭session
                       session.close();
                   }
               }
           }
       }
   }

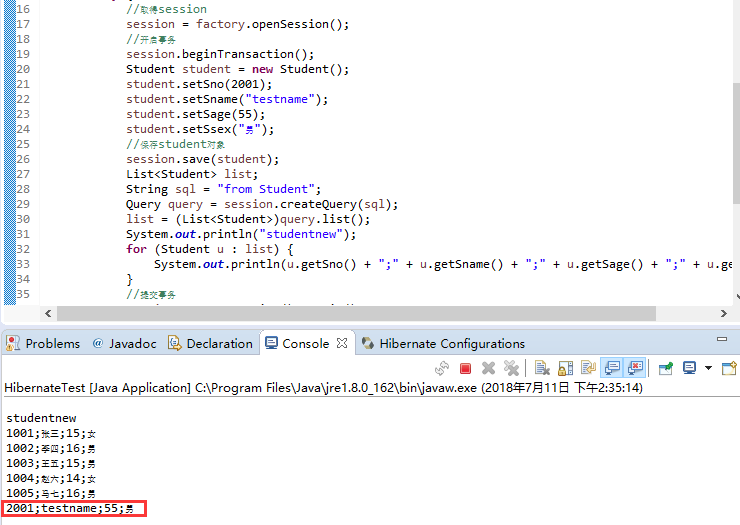

7. 运行结果

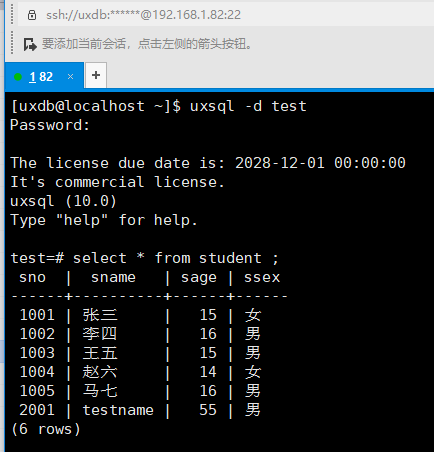

   运行结果如下显示时hibernate连接使用uxdb成功，显示student表的数据与uxdb数据库中查看结果一致。

8. 使用分析说明

   创建配置hibernate.cfg.xml时注意以下几项内容：

   a. Database dialect：org.hibernate.dialect.UXSQLDialect（使用uxdb的dialect）。

   b. Driver class：com.uxsino.uxdb.Driver（使用uxdb的driver.class）。

   c. Connection url：jdbc:uxdb://192.168.1.82:5432/test（jdbc：uxdb：//IP：port/databasename）。

   d. Username：uxdb。

   e. Password：123456。

   注意

   1. 导入uxdb的jdbc包。
   2. 使用hibernate框架时在导入uxdb的jdbc包之后需导入hibernate的包和uxdb的Dialect包，并在使用时填写正确。

2.Spring

1. 安装SpringIDE

   下载离线包或者在线安装SpringIDE插件。

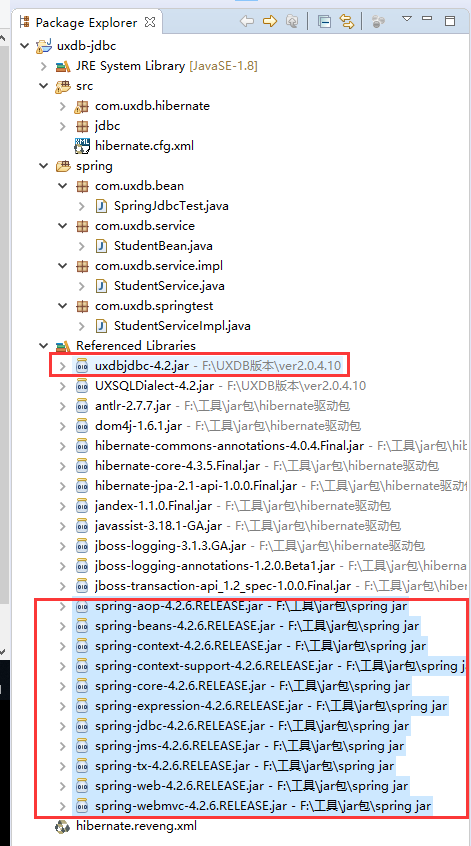

2. 导入spring所有驱动包

   导入官网下载的spring驱动包。

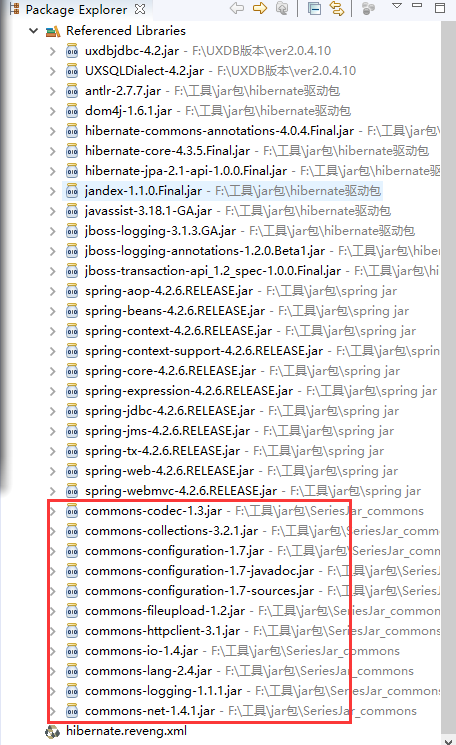

3. 导入commons驱动包

   导入官网下载的commons驱动包。

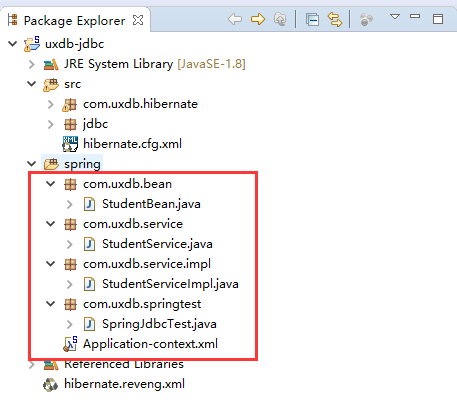

4. 创建Bean类、接口类、接口实现类、beans.xml配置和测试类

   右键uxdb-jdbc，New=>Source Folder，Folder name输入spring。

   创建包（右键spring，New=>Package）

   com.uxdb.bean，com.uxdb.service，com.uxdb.service.impl，com.uxdb.springtest。

   包下面创建对应的类（右键包名，New=>Class） StudentBean，StudentService，StudentServiceImpl，SpringJdbcTest。

   创建Spring Bean配置文件（右键spring，New=>Other...=>Spring=>Spring Bean Configuration File，单击Next，File name中输入Application-context，单击Finish）。



   a. StudentBean.java;

   package com.uxdb.bean;
   public class StudentBean {
   	private int sno;
   	private String sname;
   	private int sage;
   	private String ssex;
   	public int getSno() {
   		return sno;
   	}
   	public void setSno(int sno) {
   		this.sno = sno;
   	}
   	public String getSname() {
   		return sname;
   	}
   	public void setSname(String sname) {
   		this.sname = sname;
   	}
   	public int getSage() {
   		return sage;
   	}
   	public void setSage(int sage) {
   		this.sage = sage;
   	}
   	public String getSsex() {
   	   	return ssex;
   	}
   	public void setSsex(String ssex) {
   		this.ssex = ssex;
   	}
   }


   b. StudentService.java;

   package com.uxdb.service;
   import java.util.List;
   import com.uxdb.bean.StudentBean;
   public interface StudentService {
       //保存
       public void save(StudentBean student);
       //更新
       public void update(StudentBean student);
       //获取
       public StudentBean getStudent(int sno);
       public List<StudentBean> getStudentBean();
       //删除记录
       public void delete(int sno);
   }


   c.StudentServiceImpl.java;

   package com.uxdb.service.impl;
   import java.sql.ResultSet;
   import java.sql.SQLException;
   import java.util.List;
   import javax.sql.DataSource;
   import org.springframework.jdbc.core.JdbcTemplate;
   import org.springframework.jdbc.core.RowMapper;
   import com.uxdb.bean.StudentBean;
   import com.uxdb.service.StudentService;
   public class StudentServiceImpl implements StudentService {
   	private JdbcTemplate jdbcTemplate;
   	public void setDataSource(DataSource dataSource) {
   		this.jdbcTemplate = new JdbcTemplate(dataSource);
   	}
   	@Override
   	public void save(StudentBean student) {
   		// TODO Auto-generated method stub
   	   	jdbcTemplate.update("insert into student(sno,sname,sage,ssex) values(?,?,?,?)",
   		   		new Object[] { student.getSno(), student.getSname(), student.getSage(), student.getSsex() },
   			   	new int[] { java.sql.Types.INTEGER,java.sql.Types.VARCHAR,
   				   			java.sql.Types.INTEGER,java.sql.Types.VARCHAR });
   	   }
   	   @Override
   	   public void update(StudentBean student) {
   		   // TODO Auto-generated method stub
   		   jdbcTemplate.update("update student set sname=?,ssex=? where sno=?",
   			   	new Object[] { student.getSname(), student.getSsex(), student.getSno() },
   				new int[] { java.sql.Types.VARCHAR,java.sql.Types.VARCHAR,java.sql.Types.INTEGER });
   	   }
   	   @SuppressWarnings("unchecked")
   	   @Override
   	   public StudentBean getStudent(int sno) {
   		   // TODO Auto-generated method stub
   		   return (StudentBean) jdbcTemplate.queryForObject("select * from student where sno=?",
   			   	new Object[] { sno },
   				   new int[]{java.sql.Types.INTEGER},new StudentRowMapper() );
   	   }
   	   @SuppressWarnings("unchecked")
   	   @Override
   	   public List<StudentBean> getStudentBean() {
   		   // TODO Auto-generated method stub
   		   return (List<StudentBean>)jdbcTemplate.query("select * from student", new StudentRowMapper() );
   	   }
   	   @SuppressWarnings("rawtypes")
   	   public class StudentRowMapper implements RowMapper {
   	       @Override
   	       public Object mapRow(ResultSet rs, int n) throws SQLException {
   	           // TODO Auto-generated method stub
   	    	   StudentBean student=new StudentBean();
   			     student.setSno(rs.getInt("sno"));
   	   		    student.setSname(rs.getString("sname"));
   	   		    student.setSage(rs.getInt("sage"));
   	   		    student.setSsex(rs.getString("ssex"));
   	   		    return student;
   	       }
   	   }
   	   @Override
   	   public void delete(int sno) {
   		   // TODO Auto-generated method stub
   	   	jdbcTemplate.update("delete from student where sno=?", new Object[] { sno },
   		   		new int[] { java.sql.Types.INTEGER });
   	   }
   }


   d. Application-context.xml;

   <?xml version="1.0" encoding="UTF-8"?>
   <beans xmlns="http://www.springframework.org/schema/beans"
   	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">
       <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
             <property name="driverClassName" value="com.uxsino.uxdb.Driver"/>
             <property name="url" value="jdbc:uxdb://192.168.1.82:5432/test"/>
             <property name="username" value="uxdb"/>
             <property  name="password" value="123456"/>
       </bean>
       <bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
             <property name="dataSource" ref="dataSource"/>
       </bean>
       <bean id="studentService" class="com.uxdb.service.impl.StudentServiceImpl">
             <property name="dataSource" ref="dataSource"></property>
       </bean>
   </beans>


   e. SpringJdbcTest.java;

   package com.uxdb.springtest;
   import java.util.List;
   import org.springframework.context.ApplicationContext;
   import org.springframework.context.support.ClassPathXmlApplicationContext;
   import com.uxdb.bean.StudentBean;
   import com.uxdb.service.StudentService;
   public class SpringJdbcTest {
   	private static  StudentService studentService;
   	private static ApplicationContext act;
   	public static void main(String[] args) {
   		act = new ClassPathXmlApplicationContext("Application-context.xml");
   		studentService=(StudentService) act.getBean("studentService");
   		List<StudentBean> list;
   		StudentBean student = new StudentBean();
   		student.setSno(8008);
   		student.setSname("springname");
   		student.setSage(66);
   		student.setSsex("女");
   		studentService.save(student);
   		list = studentService.getStudentBean();
   		System.out.println("newstudent");
   		for (StudentBean u : list) {
   			System.out.println(u.getSno() + ";" + u.getSname() + ";" + u.getSage() + ";" + u.getSsex());
   		}
   		student.setSno(1005);
   		student.setSname("tnm");
   		student.setSsex("男");
   		studentService.update(student);
   		student = studentService.getStudent(1005);
   		System.out.println("");
   		System.out.println("updatestudent");
   		System.out.println(student.getSno() + ";" + student.getSname() + ";" + student.getSage() + ";" + student.getSsex());
   		//studentService.delete(8008);
   		list = studentService.getStudentBean();
   		System.out.println("");
   		System.out.println("student");
   		for (StudentBean u : list) {
   			System.out.println(u.getSno() + ";" + u.getSname() + ";" + u.getSage() + ";" + u.getSsex());
   		}
   	}
   }


5. 运行结果

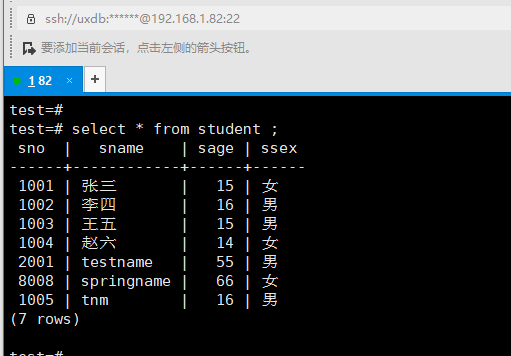

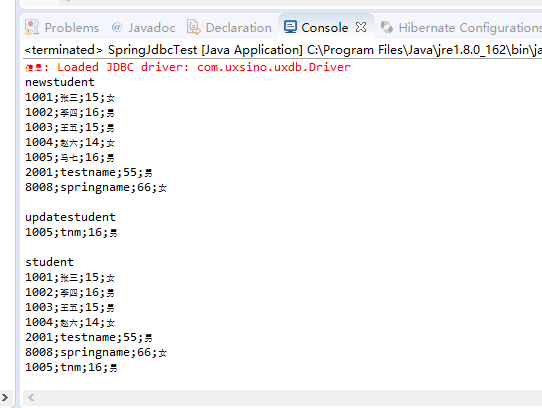

   运行结果如下显示时spring连接使用uxdb成功，显示student表的数据与uxdb数据库中查看结果一致。

6. 使用分析说明

   配置Application-context.xml文件注意以下几点：

   a. driverClassName="com.uxsino.uxdb.Driver" （使用uxdb的driver class）。

   b. url="jdbc:uxdb://192.168.1.223:5432/test"（jdbc:uxdb://IP:port/databasename）。

   c. username="uxdb"。

   d. password="******"。

3.MyBatis

1. 安装MyBatis

   下载离线包或者在线安装插件。

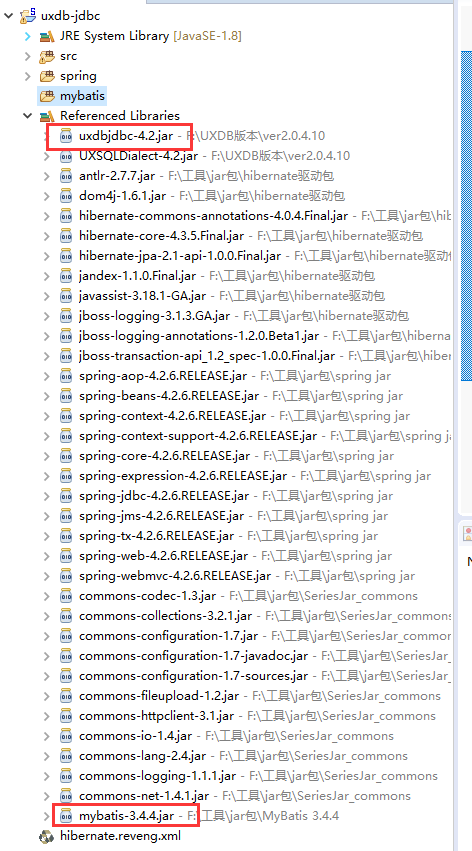

2. 导入mybatis的驱动包

   导入官网下载的mybatis驱动包。

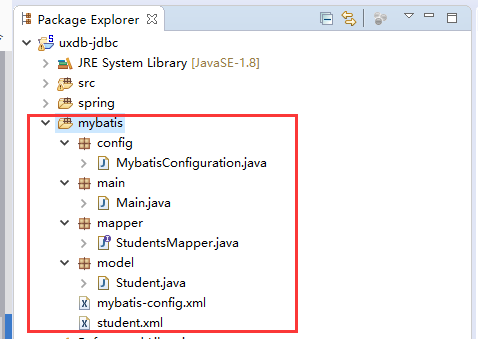

3. 创建接口类、配置和测试类等

   右键uxdb-jdbc，New=>Source Folder，Folder name输入mybatis。

   创建包（右键mybatis，New=>Package）config，main，mapper，model。

   包下面创建对应的类（右键包名，New=>Class）MybatisConfiguration，Main，StudentsMapper，Student。

   创建Mybatis配置文件（右键mybatis，New=>Other...=>MyBatis=>MyBatis Generator Configuration File，单击Next，File name中输入mybatis-config.xml和student.xml，单击Finish）。



   a. Student.java代码如下：

   package model;
   public class Student {
       private int sno;
       private String sname;
       private int sage;
       private String ssex;
       public int getSno() {
           return sno;
       }
       public void setSno(int sno) {
           this.sno = sno;
       }
       public String getSname() {
           return sname;
       }
       public void setSname(String sname) {
           this.sname = sname;
       }
       public int getSage() {
           return sage;
       }
       public void setSage(int sage) {
           this.sage = sage;
       }
       public String getSsex() {
           return ssex;
       }
       public void setSsex(String ssex) {
           this.ssex = ssex;
       }
   }


   b. StudentsMapper代码如下：

   package mapper;
   import model.Student;
   import java.util.List;
   // Maps queries in student.xml
   public interface StudentsMapper {
       public List<Student> getStudents();
   }


   c. MybatisConfiguration.java代码如下：

   package config;
   import org.apache.ibatis.io.Resources;
   import org.apache.ibatis.session.SqlSessionFactory;
   import org.apache.ibatis.session.SqlSessionFactoryBuilder;
   import java.io.IOException;
   import java.io.Reader;
   public class MybatisConfiguration {
       private static final String MYBATIS_CONFIG_FILE = "mybatis-config.xml";
       private final SqlSessionFactory sqlSessionFactory;
       public MybatisConfiguration() throws IOException {
           try(Reader reader = Resources.getResourceAsReader(MYBATIS_CONFIG_FILE)) {
                   sqlSessionFactory = new SqlSessionFactoryBuilder().build(reader);
           }
       }
       public SqlSessionFactory getSessionFactory() {
           return sqlSessionFactory;
       }
   }


   d. mybatis-config.xml如下：

   <?xml version="1.0" encoding="UTF-8"?>
   <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
   <configuration>
       <environments default="development">
           <environment id="development">
               <transactionManager type="JDBC"/>
               <dataSource type="POOLED">
                   <property name="poolMaximumActiveConnections"     value="50"/>
                   <property name="poolMaximumIdleConnections"       value="10"/>
                   <property name="poolMaximumCheckoutTime"          value="20000"/>  <!-- milliseconds -->
                   <property name="driver" value="com.uxsino.uxdb.Driver"/>
                   <property name="url" value="jdbc:uxdb://192.168.1.82:5432/test"/>
                   <property name="username" value="uxdb"/>
                   <property name="password" value="123456"/>
               </dataSource>
           </environment>
       </environments>
       <mappers>
           <mapper resource="student.xml"/>
       </mappers>
   </configuration>


   e. student.xml如下：

   <?xml version="1.0" encoding="UTF-8" ?>
   <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
   <mapper namespace="mapper.StudentsMapper">
       <select id="getStudents" parameterType="int" resultType="model.Student">
           INSERT INTO student VALUES(9999,'mybatis',99,'boy');
           SELECT * FROM student
       </select>
   </mapper>


   f. 测试代码Main.java如下：

   package main;
   import config.MybatisConfiguration;
   import mapper.StudentsMapper;
   import model.Student;
   import org.apache.ibatis.session.SqlSession;
   import java.io.IOException;
   import java.util.List;
   public class Main {
       public static void main(String[] args) throws IOException {
           // Parse the configuration file mybatis-config.xml
           MybatisConfiguration config = new MybatisConfiguration();
           List<Student> students;
           // Get a session. Get the mapper (defined in countries-languages.xml) and query using business-logic style. Close session
           SqlSession sqlSession = config.getSessionFactory().openSession();
           try {
               StudentsMapper mapper = sqlSession.getMapper(StudentsMapper.class);
               students = mapper.getStudents();
           } finally {
               if(null != sqlSession) {
                   sqlSession.close();
               }
           }
           if(students != null) {
               // Print query results
               System.out.println("Sno,Sname,Sage,Ssex");
               for(Student cl : students) {
                   System.out.println(cl.getSno() + "," + cl.getSname() + "," + cl.getSage()+ "," + cl.getSsex());
               }
           }
   }
   }

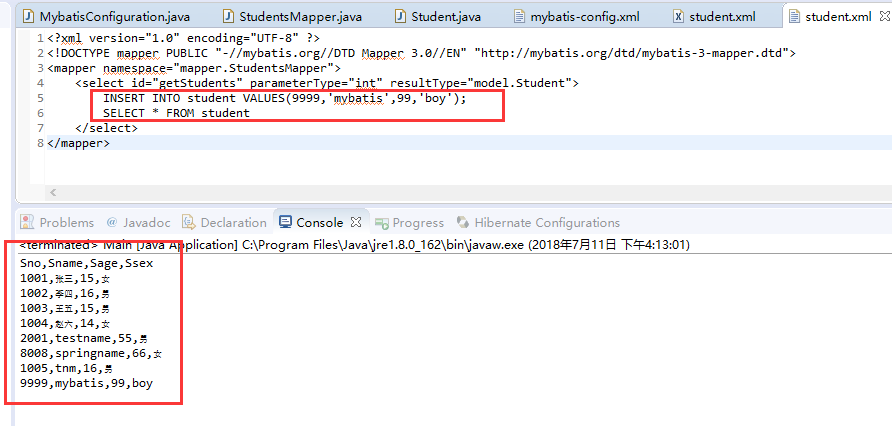

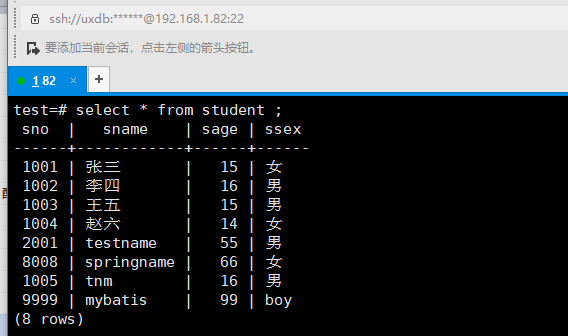

4. 运行结果



5. 使用分析说明

   配置mybatis-config.xml文件注意以下几点：

   a. driverClassName="com.uxsino.uxdb.Driver" （使用uxdb的driver.class）。

   b. url="jdbc:uxdb://192.168.1.82:5432/test"（jdbc：uxdb：//IP：port/databasename）。

   c. username="uxdb"。

   d. password="******"。
